1. The ISO/IEC 17025 Standard: Legal Passport for Global Trade
The strict implementation of the technical competence standard ISO/IEC 17025 represents the highest standard of quality, reliability, and impartiality in modern analytical metrology. This accreditation, granted after rigorous audits by recognized national accreditation bodies (such as ONAC in Colombia or Agrocalidad in Ecuador), transcends the purely technical realm to become an unavoidable commercial pillar.
In a globalized market where food safety requirements are inflexible, the ISO/IEC 17025 endorsement provides the definitive evidentiary backing in the face of international import and export disputes. When a batch of cocoa beans is retained at an international port due to presumed contamination, the reports issued by laboratories accredited under this standard are the only ones that possess legal validity and cross-border mutual recognition thanks to ILAC (International Laboratory Accreditation Cooperation) agreements. This ensures access and permanence in highly valuable markets regulated by the European Union and the FDA in the United States.
2. LIMS Traceability and Sample Preparation: The Challenge of the Complex Matrix
The rigor and certainty of any analytical process lie in the initial control of the matrix and in ensuring its statistical representativeness. In accredited laboratories, the workflow begins with the physical evaluation and rigorous registration of the primary sample. During the physical inspection phase, it is customary to evaluate the internal quality of the bean. For this purpose, a guillotine is used, a hinged device that allows a clean and simultaneous longitudinal cut to be made on a series of beans, dividing them exactly in half to visually assess physical defects, degree of fermentation, and infestations.
Concurrently, for chemical management, automated LIMS (Laboratory Information Management System) platforms are deployed in order to assign a unique barcode to each entry, ensuring uninterrupted traceability and a tamper-proof chain of custody. In order to counteract the inherent heterogeneity of the product, analytical samples must meet a minimum representative weight of 200 grams and be received in perfect hermetically sealed conditions.
Once homogenization and cryogenic milling are completed, the most critical preparatory analytical stage proceeds: acid digestion. Given the macromolecular complexity of cocoa—extremely rich in recalcitrant lipids (cocoa butter), proteins, polyphenols, and alkaloids—cold digestion or digestion in open vessels proves insufficient and prone to errors. Instead, an exact aliquot of the sample is transferred to closed reaction vessels, adding concentrated suprapure-grade nitric acid (HNO₃), sometimes assisted by hydrogen peroxide (H₂O₂).
These vessels are introduced into pressurized microwave acid digestion systems or ovens. The equipment applies controlled high-temperature ramps (typically up to 200 °C) and elevated pressures (exceeding 40 bar). This electromagnetic energy breaks the organic bonds of the matrix efficiently, destroying the carbonaceous matter and achieving complete oxidative digestion. This procedure guarantees the total solubilization of the analytes of interest, such as cadmium (Cd) and lead (Pb), retaining them in a homogeneous and acidic aqueous phase, completely free from volatilization losses or biases due to cross-environmental contamination.

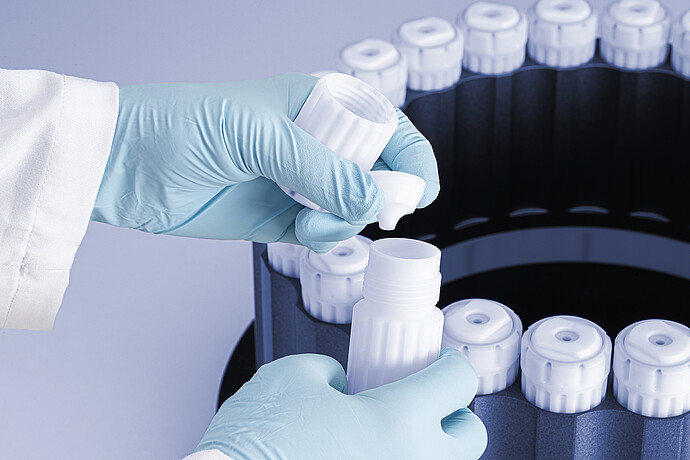

Microwave-assisted digestion system
3. High-Precision Analytical Instrumentation: ICP-MS, GF-AAS, and FAAS
The exact quantification of trace (mg/kg or ppm) and ultra-trace (µg/kg or ppb) levels of heavy metals in cocoa demands the use of state-of-the-art metrological instrumentation. The three main technologies validated and accepted under ISO/IEC 17025 accreditation schemes present markedly differentiated operational characteristics:
ICP-MS (Inductively Coupled Plasma Mass Spectrometry): It is considered the gold standard of contemporary analytical chemistry. The digested sample is nebulized and introduced into a magnetically confined argon plasma at extreme temperatures (6000 - 10000 K), which causes the almost total atomization and ionization of the elements. The generated ions are directed to a mass spectrometer that separates them according to their mass-to-charge ratio (m/z). This technique stands out for offering simultaneous multi-elemental analysis with extraordinarily low detection limits, in the parts per trillion (ppt) or parts per billion (ppb) range, being the preferred tool for baseline soil studies and the issuance of unassailable official export certifications.
GF-AAS (Graphite Furnace Atomic Absorption Spectrometry): This technology employs an electrothermally heated graphite tube instead of a flame. The sample goes through a meticulously programmed sequential program: drying, pyrolysis (where residual organic matrices are ashed at moderate temperatures), and atomization (where the tube rapidly reaches the atomization temperature of the metal). Light from a hollow cathode lamp specific to Cd or Pb passes through the atomic vapor, and absorbance is measured. By confining the atoms in the optical path for a prolonged time, it exhibits superior analytical sensitivity for individual elements in fatty and complex matrices, overcoming the physical space and time limitations of conventional spectrometry.
FAAS (Flame Atomic Absorption Spectrometry): It represents the most classic, robust, and economically viable approach for routine internal control laboratories. The sample is aspirated and atomized in an air-acetylene or nitrous oxide-acetylene flame. However, from a metrological perspective, the high residual viscosity, density, and pronounced physical inter-elemental effects of the cocoa liquor or cocoa butter matrix alter the aspiration rate and nebulizer efficiency. Therefore, the use of FAAS mandatorily requires validating calibration curves through the standard addition method, introducing known concentrations of the analyte directly into sample aliquots to correct the matrix effect and prevent the generation of false negatives.
4. Limits of Detection (LOD) and Quantification (LOQ) against Regulatory Rigor
Within the framework of metrological validation required by the ISO/IEC 17025 standard, every analytical method must unequivocally define its statistical performance limits: the Limit of Detection (LOD) and the Limit of Quantification (LOQ). These parameters are rigorously calculated by evaluating the standard deviations of multiple replicates of analytical blanks spiked at low concentrations.
As a practical example, an analytical method properly optimized for the determination of cadmium by atomic absorption may report an LOD of 0.03 mg/L and an LOQ of 0.06 mg/L in solution, which translates to proportional values in the solid sample after applying the corresponding dilution factor.
The legal and commercial significance of drawing the dividing line between the LOD and the LOQ is critical. If the signal obtained by the instrument when analyzing a cocoa batch falls above the LOD but below the LOQ, the laboratory is authorized to qualitatively confirm the presence of the heavy metal (the element is there), but is metrologically impeded from assigning a precise quantitative numerical value or issuing a concentration with acceptable analytical uncertainty.
This scenario poses a critical challenge in the face of highly restrictive international regulatory frameworks, such as EU Regulation 488/2014 of the European Commission. This legislation establishes extremely strict maximum permitted limits that vary depending on the purity and typology of the finished product:
Milk chocolate with a total dry cocoa solids content of less than 30%: 0.10 mg/kg.
Chocolate with a total dry cocoa solids content equal to or greater than 50%: 0.80 mg/kg.
Cocoa powder sold to the final consumer or as an ingredient: 0.60 mg/kg.
Erroneously reporting an estimated numerical value in the uncertainty zone between the LOD and the LOQ can bias the compliance status of a product. A false positive can cause the unnecessary destruction or financial penalization of a perfectly suitable export batch; conversely, a false negative due to poorly calculated limits will result in the interception of the container at European customs, severe administrative sanctions, and irreparable damage to the commercial reputation of the exporting brand.
5. Bibliographical References and Technical Backing
International Organization for Standardization (ISO). ISO/IEC 17025 Technical competence standard: General requirements for the competence of testing and calibration laboratories. Geneva, Switzerland.
Echeverry, A. & Reyes, H. (2016). Determinación de la concentración de cadmio en un chocolate colombiano con 65% de cacao y chocolates extranjeros con diferentes porcentajes de cacao. Revista SciELO, Colombia.
AGQ Labs Colombia. (2019). Metodologías analíticas y validación de metales pesados: Cadmio en Cacao bajo el Reglamento UE 488/2014. Bogotá, Colombia.
Organismo Internacional Regional de Sanidad Agropecuaria (OIRSA). (2020). Manual Técnico: Determinación de niveles de cadmio en almendras de cacao (Theobroma cacao) en Centroamérica y República Dominicana. San Salvador, El Salvador.
